ew IEM G4 A-Band In Ear

In Ear System

• Evolution Wireless Series

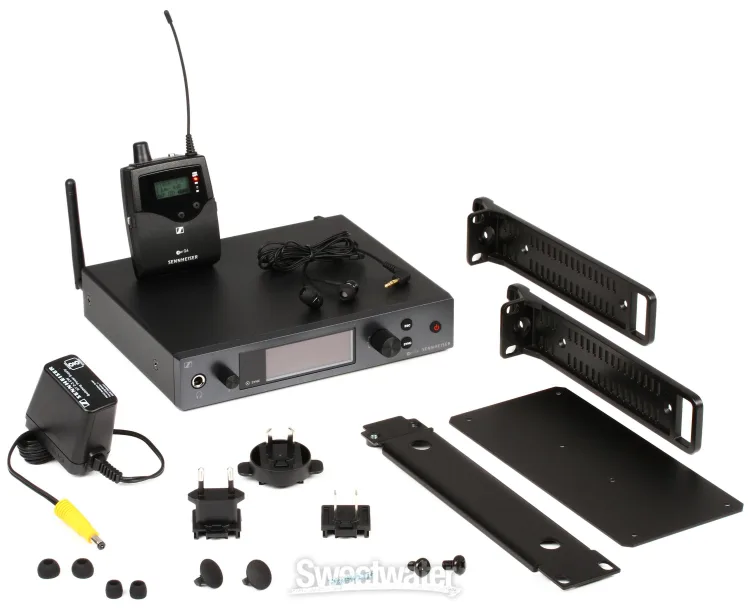

• Consisting of UHF bodypack receiver (EK IEM G4), 9.5″ transmitter (SR IEM G4) and IE4 earphones
• Frequency range: A-band 516 – 558 MHz
• Stereo- / Focus- / Mono – Mode
• Up to 1680 frequencies in 42 MHz switching bandwidth
• 20 Channel banks each with up to 16 presets
• Up to 16 compatible channels
• Frequency range: 25 – 15,000 Hz
• Frequency transmission via infrared interface
• Pocket receiver with charging contacts for optional BA 2015 rechargeable battery (NiMH) (battery not included)
• Pilot tone
• Auto tune to find free frequencies
• Audio Gain includes 60 dB
• 4-Digit battery indicator on the transmitter and receiver
• HDX compander
• OLED display with NF level and channel display
• 3.5 mm jack for earphones
• Adjustable limiter
• Switchable transmission power 10/30/50 mW
• WSM support (Ethernet interface for frequency management)
• Adjustable 6.3mm headphone jack on the transmitter
• 1 BNC antenna jack
• 2 x Jack/XLR female balanced combo jack inputs
• Power supply 10.5 – 16 V DC
• Including power supply unit NT 2-3 CW, 1 earphone IE 4, 2 x 1.5 V batteries and rack kit GA 3 for 19″ installation
