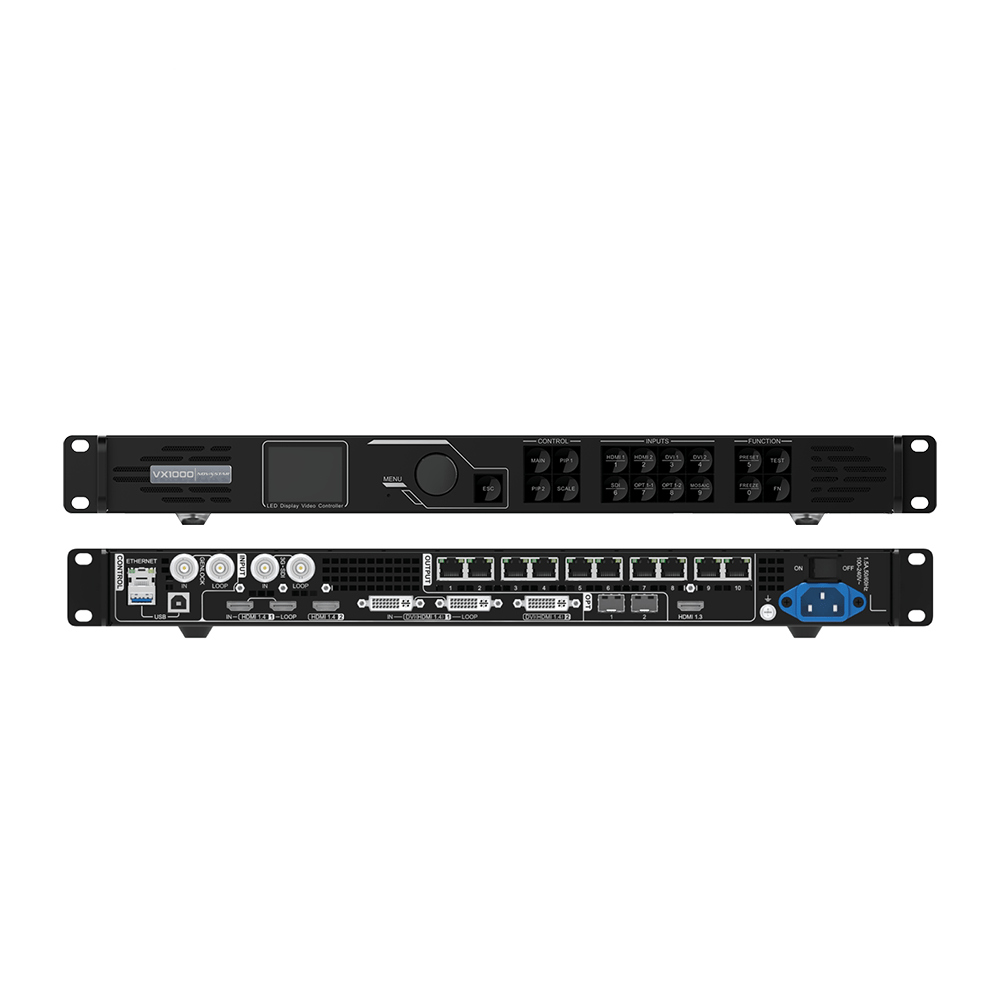

VX1000 Pro

ovaStar VX1000 Pro is an all-in-one LED controller with 10 Ethernet ports, supporting 6.5M pixels (10,240×8,192) and three modes: video control, fiber conversion, and ByPass.
Features 4K@60Hz input, 6 layers, low latency, pixel calibration, and multi-control options (NovaLCT/web/app). Industrial-grade design ideal for rental/stage/fine-pitch LED screens.

1. Key Capabilities
Processing Power:
6.5 million pixels max output (single unit)
Max Resolution: 10,240 × 8,192 pixels (ultra-wide/ultra-high screens)
Low Latency: 0-frame delay in ByPass mode / ≤2 frames in standard mode
3 Operation Modes:
Video Controller | Fiber Converter | ByPass

2. Input & Output Interfaces
Input Ports:
1× HDMI 2.0 (4K×2K@60Hz, HDCP 2.2/1.4, 12-bit color)
2× HDMI 1.3 (2K×1K@60Hz)
1× 3G-SDI (1920×1080@60Hz, SMPTE compliant)
1× 10G Self-Adaptive Optical Fiber (input/output switchable)
USB 3.0 (media playback: H.265 4K@60fps, JPEG/PNG/BMP images)
Output Ports:
10× Gigabit Ethernet (650K pixels/port)
2× 10G Fiber (copy/backup modes, supports single/multi-mode modules)
1× HDMI 1.3 (monitoring, 1920×1080 fixed)
1× 3D Sync Connector (for 3D emitter integration)
Audio: 3.5mm input/output (48kHz sampling)

3. Advanced Features
Multi-Layer Management:
6 layers (supports 4K×2K/4K×1K/2K×1K configurations)
Adjustable size/position/priority/aspect ratio
Image Optimization:
SuperView III engine (stepless scaling, pixel-perfect cropping)
Per-Pixel Calibration: Brightness/chroma tuning via NovaLCT software
Sync & Control:
Genlock (internal/external sync)
256 Presets (one-button recall)
EDID Management (import/export)
Free Topology (non-rectangular screen layouts)

4. User Control Options
Front Panel:
Rotary knob + LCD menu
Shortcut buttons (presets, freeze, scale, media playback)
Remote Control:
NovaLCT (PC) | Unico Web | VICP App

5. Reliability & Backup
Redundancy:
Input/Ethernet/fiber port backup
Hot-swappable design
Environmental:
Operating Temp.: 0°C to 50°C | Humidity: 5–85% RH
Industrial-Grade Casing (24/7 stability tested)

6. Certifications & Compliance
Safety: UL, CE, FCC, RoHS, EAC
EMC: Class A (industrial use)

7. Physical Specs
Dimensions: 482.6 × 302.2 × 50.1mm (1U rack-mountable)
Weight: 3.9kg (net) | 6.5kg (packaged)
Power: 100–240V AC | Consumption: 43W
